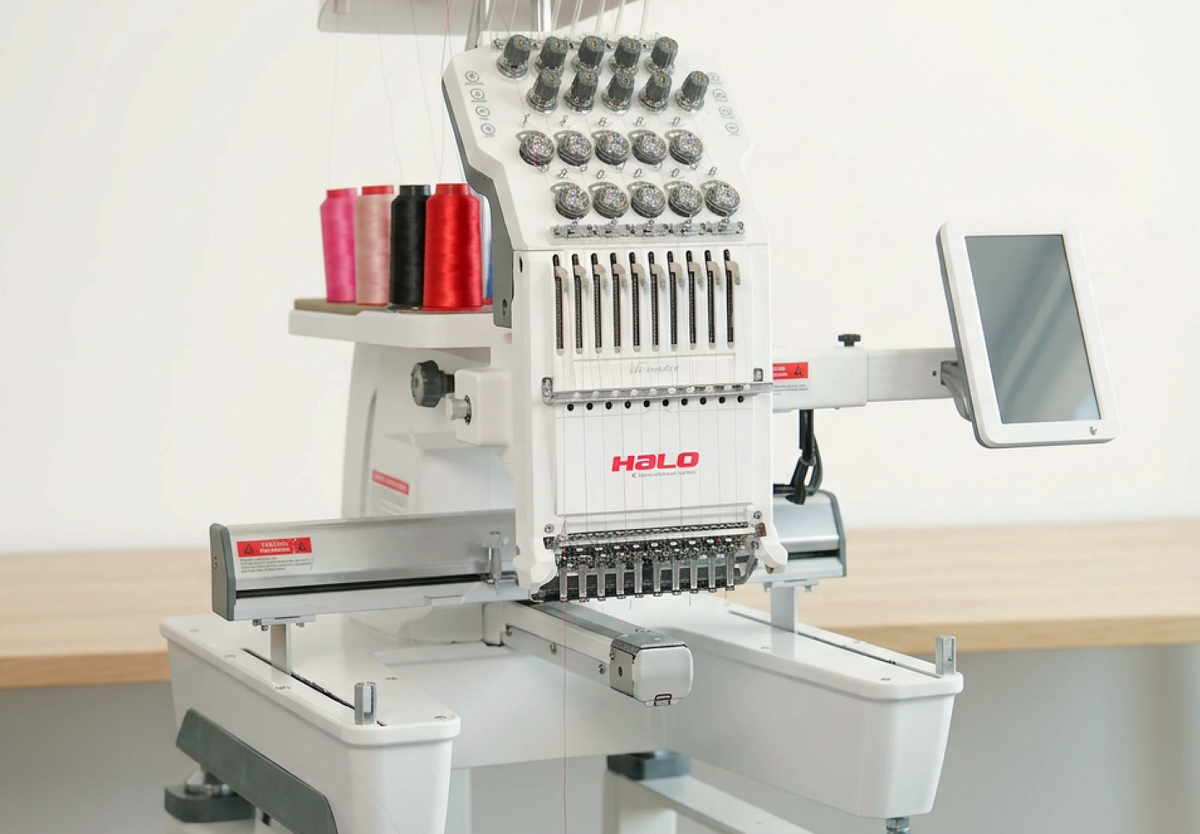

Get the Highlights

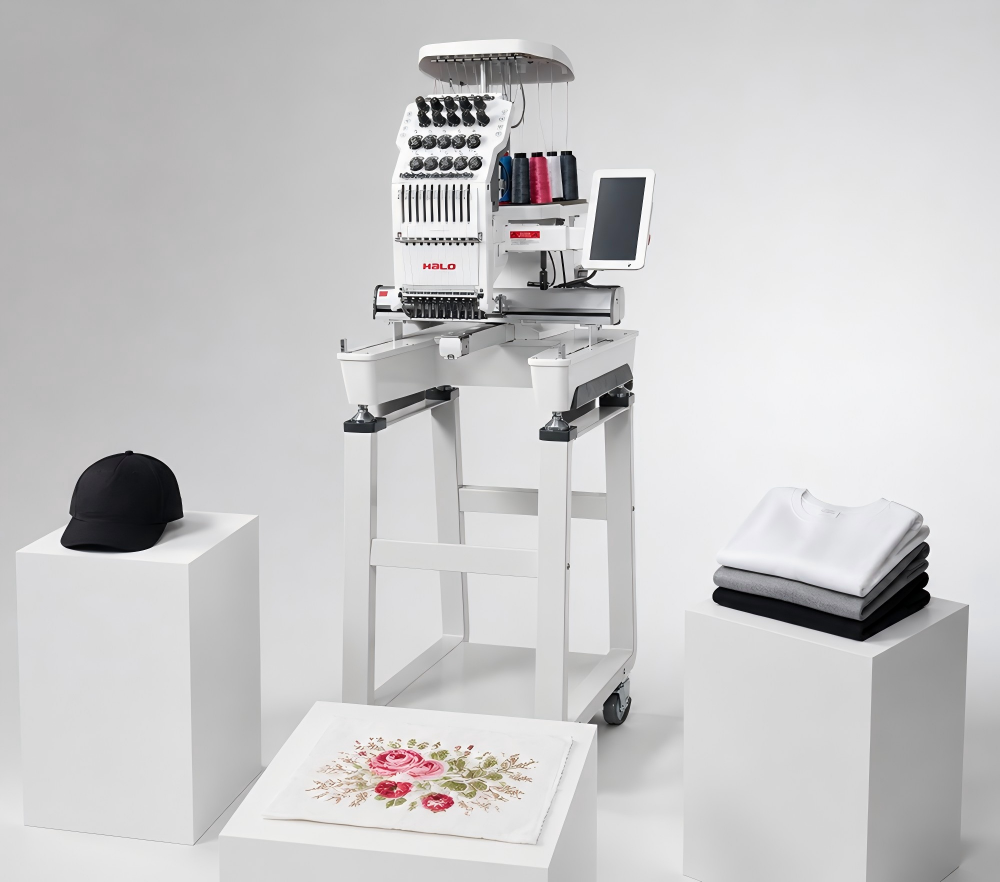

Versatile for Every Project
One embroidery machine for caps, flat fabrics, and finished garments—giving your business the flexibility to handle virtually any embroidery application.

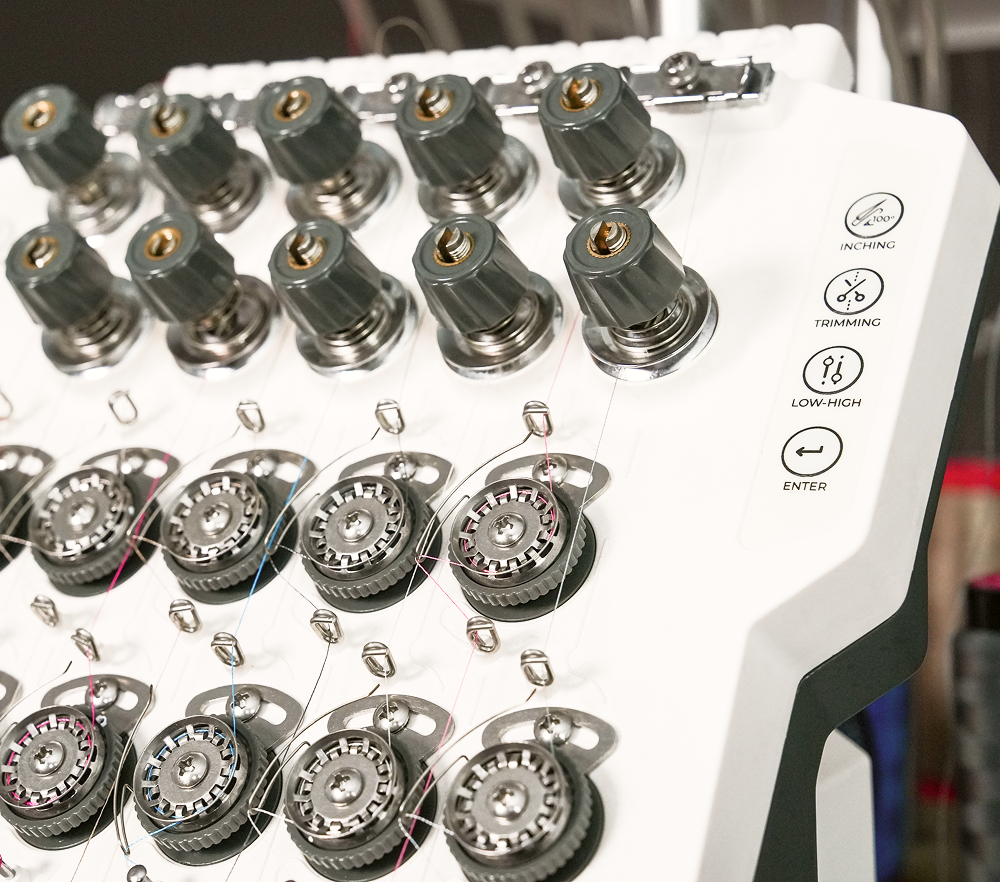

Dedicated Physical Controls

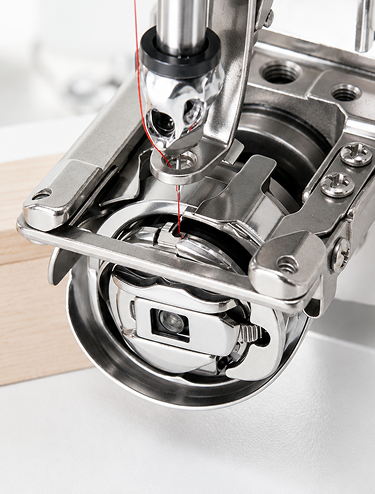

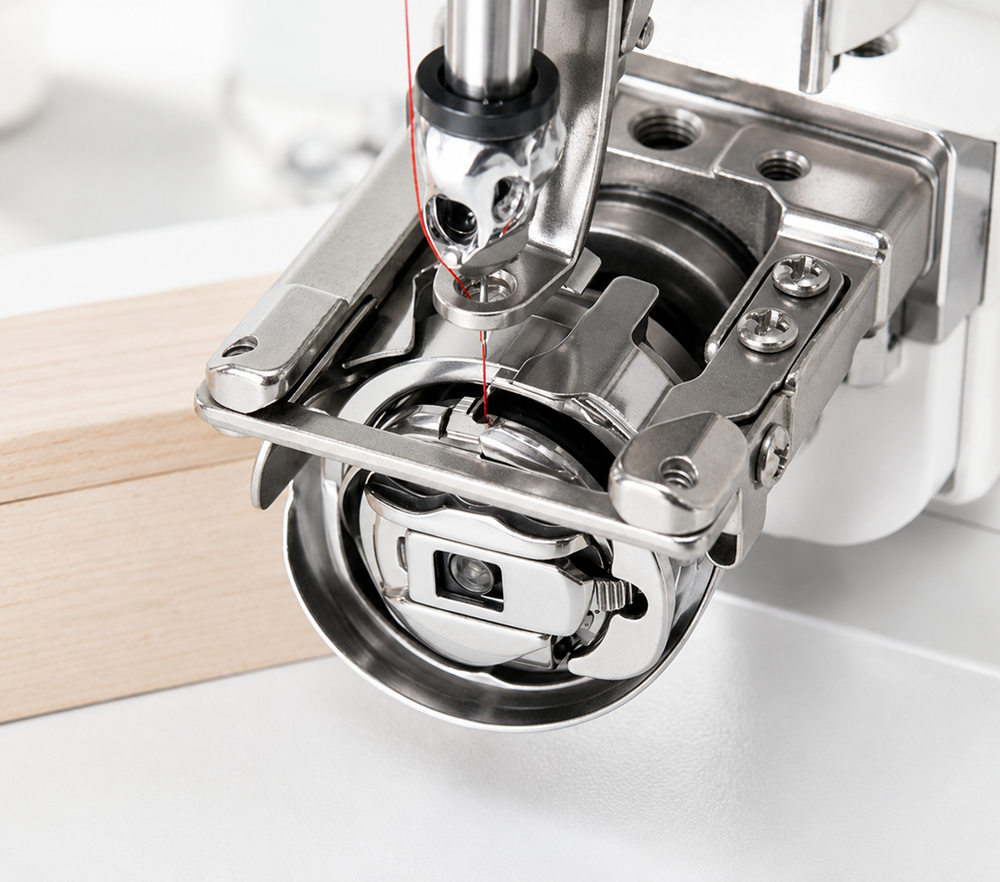

Rotary Thread Trimming System

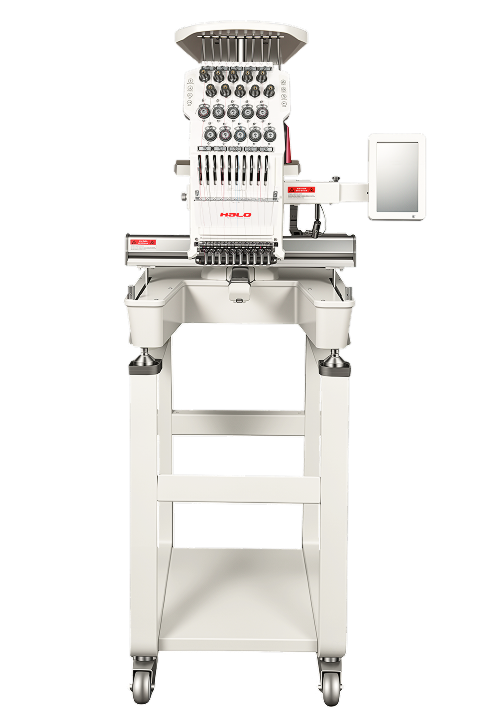

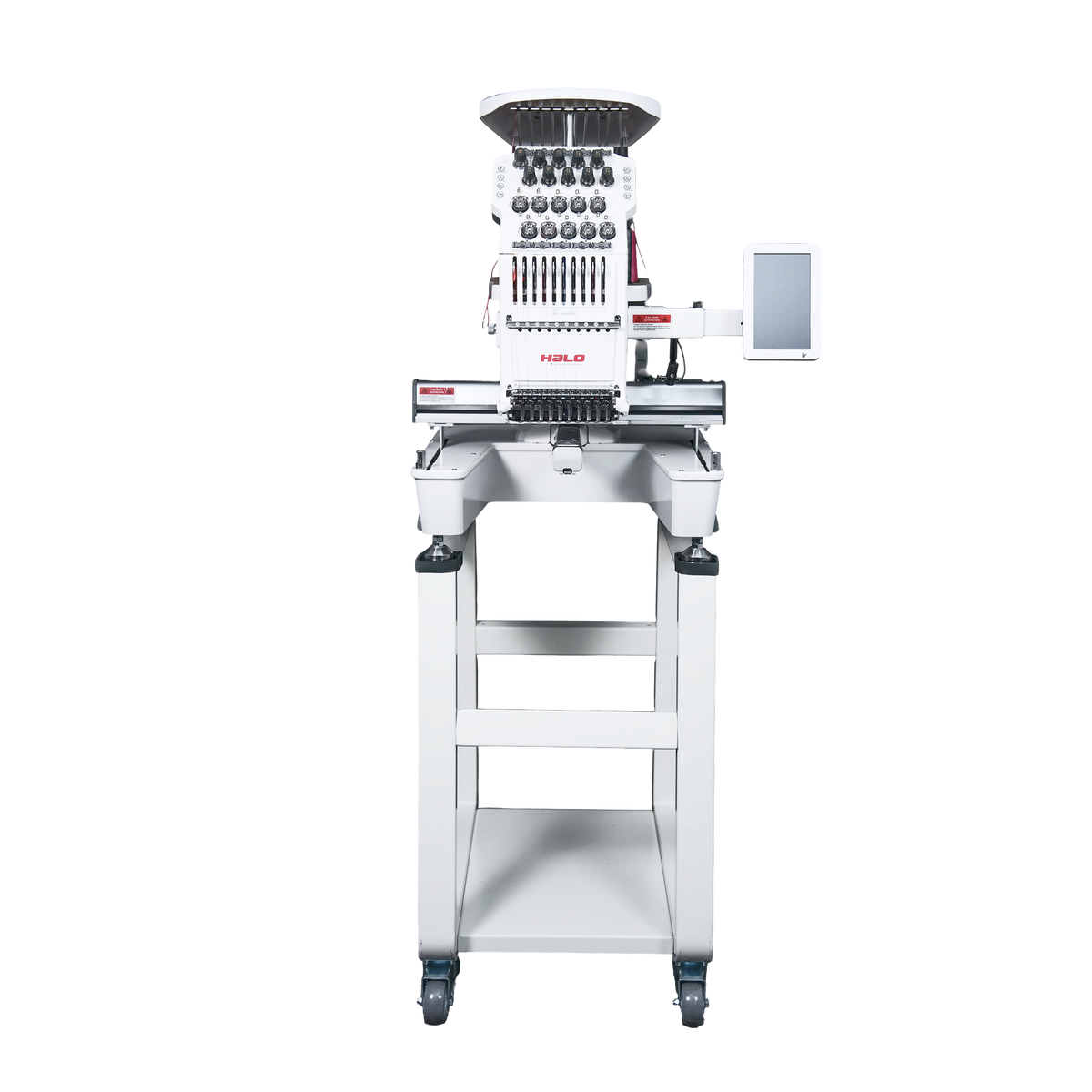

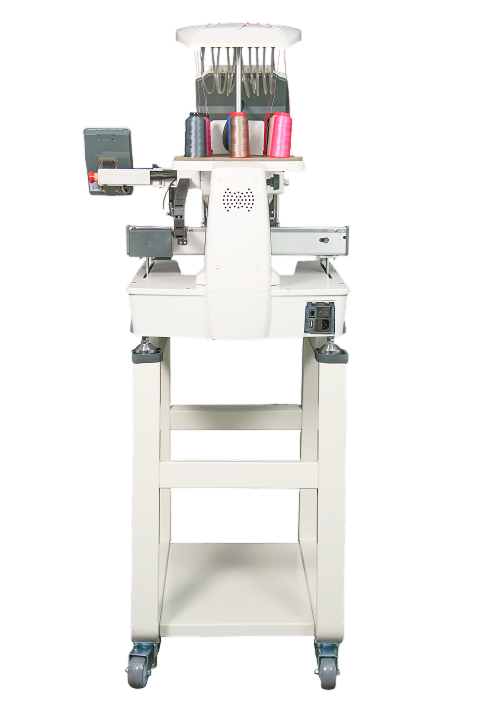

Front view

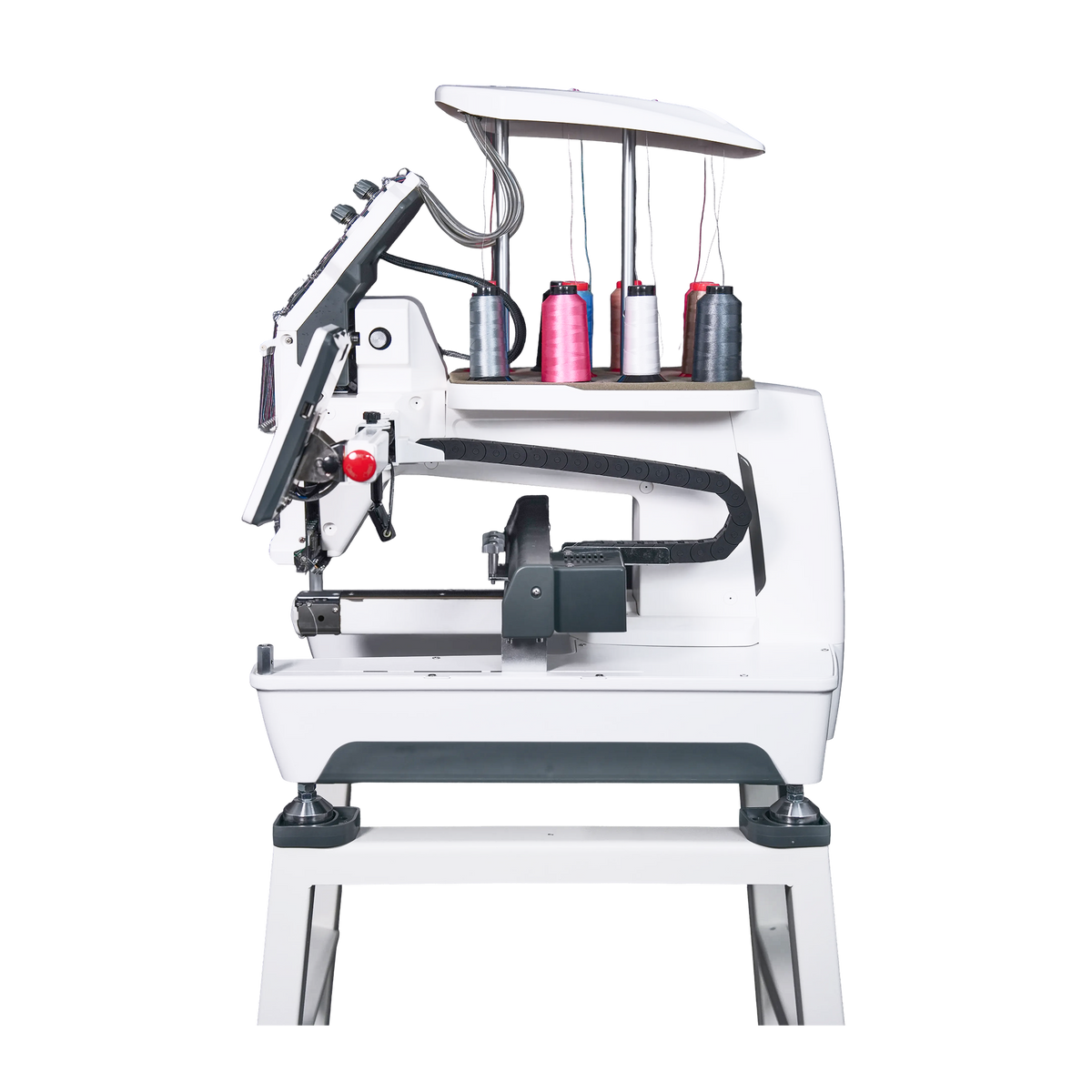

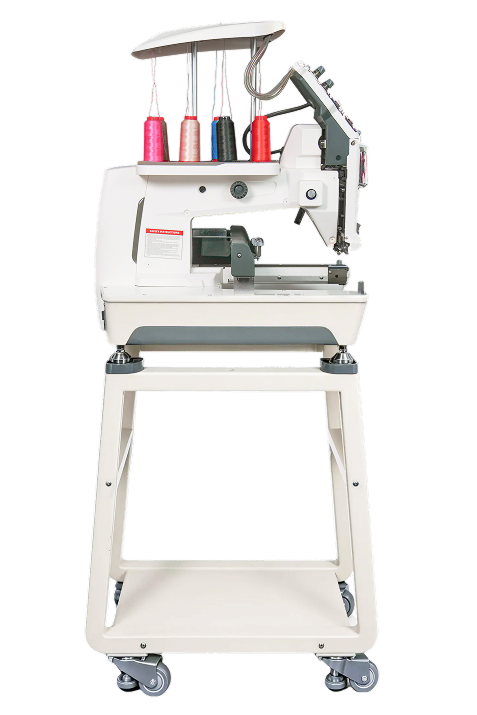

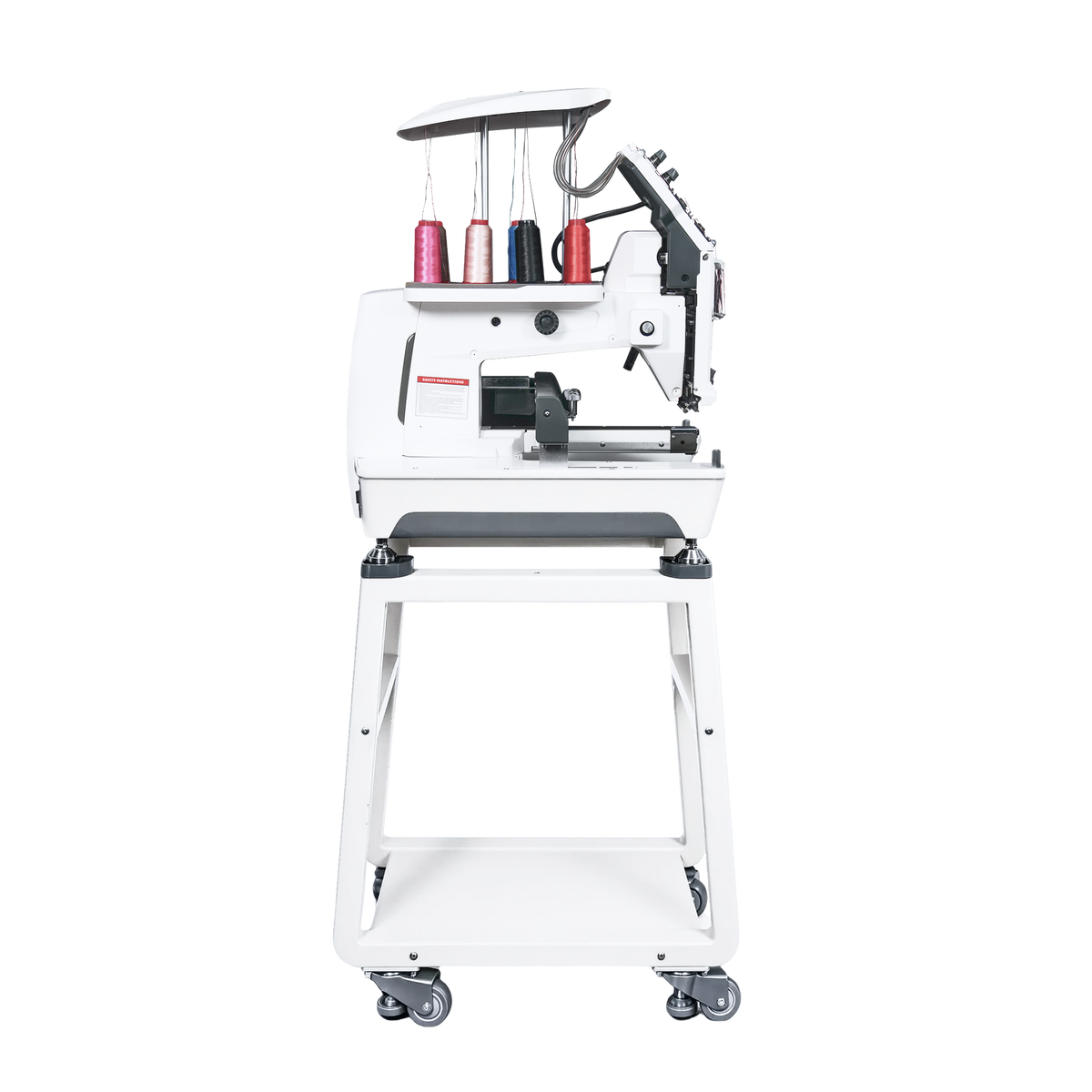

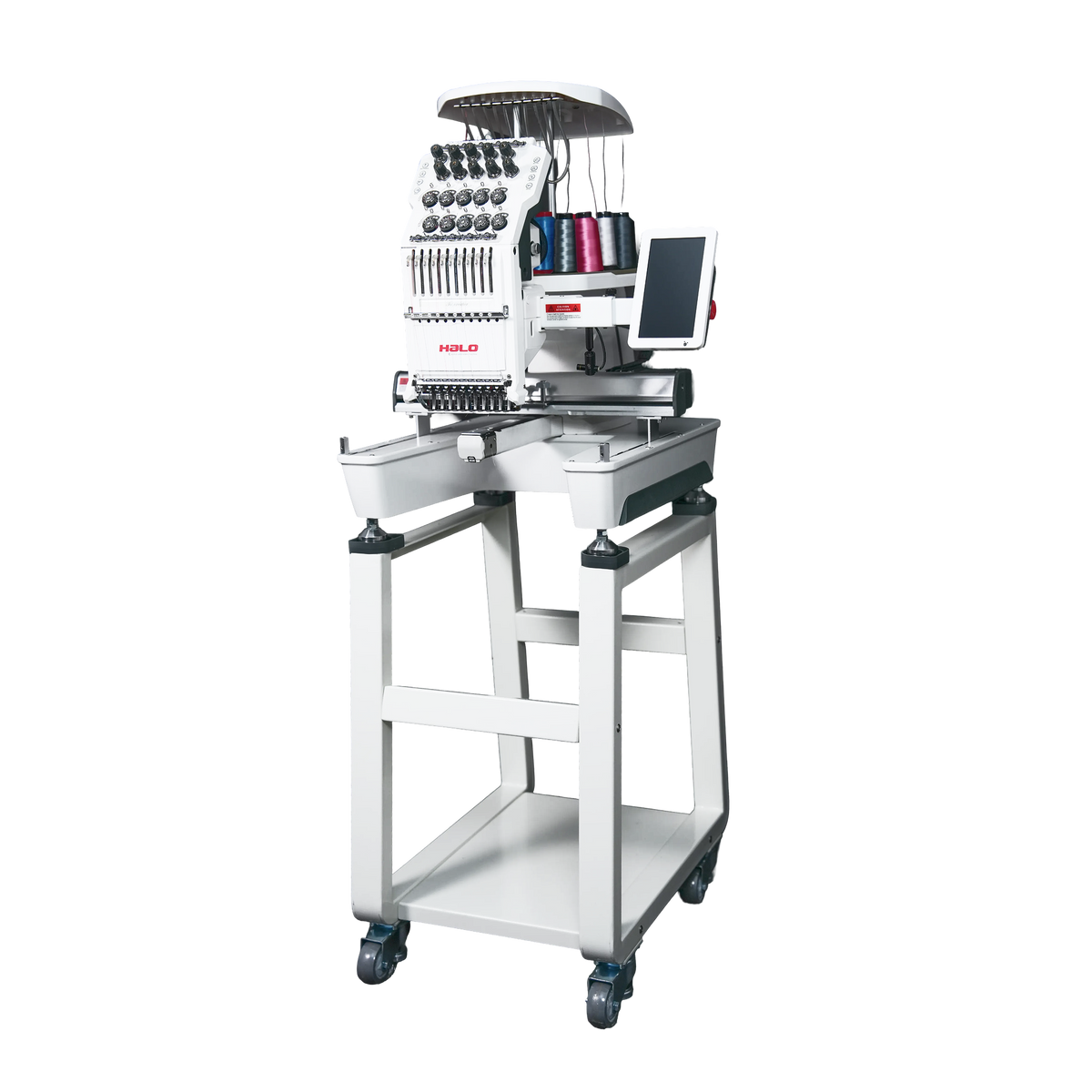

Side view

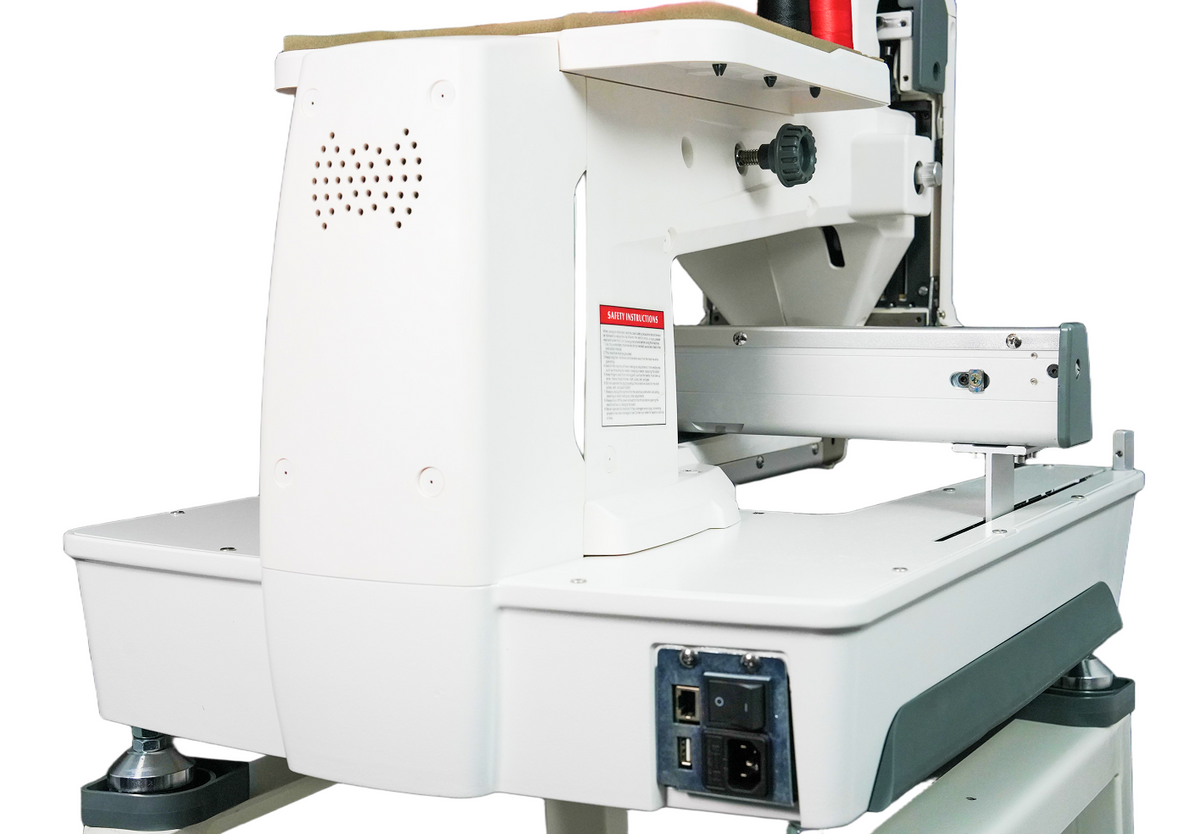

Rear view
1
2
3
1
1
1

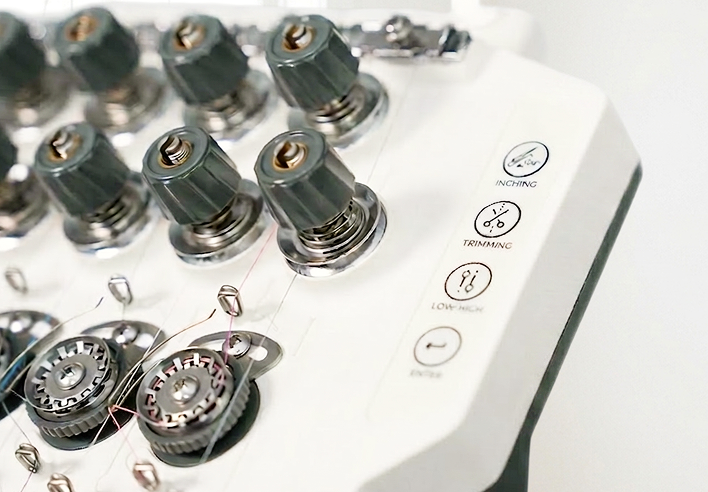

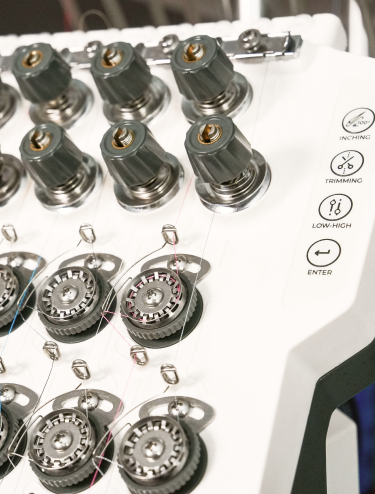

Convenient Physical Control Buttons
Built on proven industrial technology, delivering stable performance and precise stitching for every project.
2

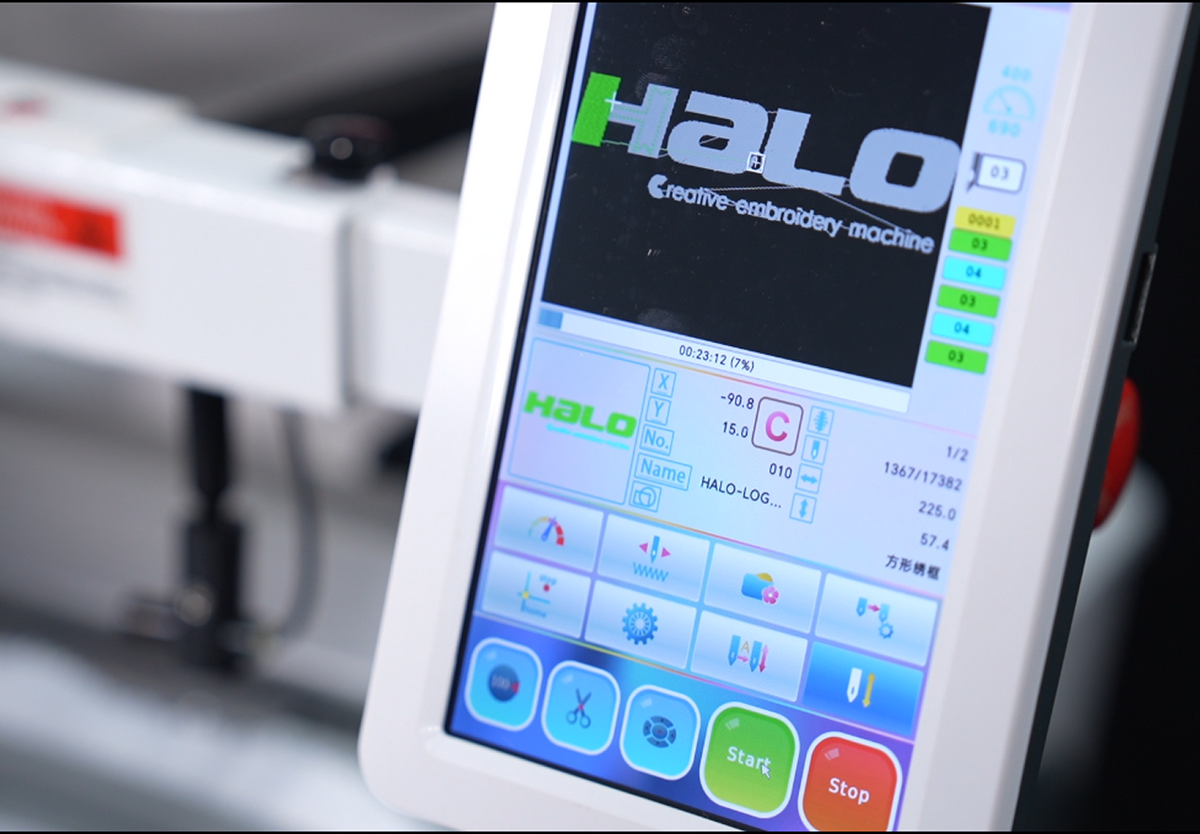

One-Screen Smart Control
The touch panel shows real‑time embroidery progress, axis positioning and pattern data for on‑site status tracking and direct machine control.
3
Industrial-Grade Precision
Built on proven industrial technology, delivering stable performance and precise stitching for every project.
1
Streamlined Cohesive Appearance
Crafted with minimalist soft lines and balanced elegant color matching. Patented exterior design (Patent No. 2024303203765).
1
Easy-to-Disassemble Low-Maintenance Drive
Fitted with precision bearings and high-performance engineered plastics, this drive delivers effortless disassembly and simple routine maintenance, while ensuring ultra-smooth operation, reduced vibration and quieter running.

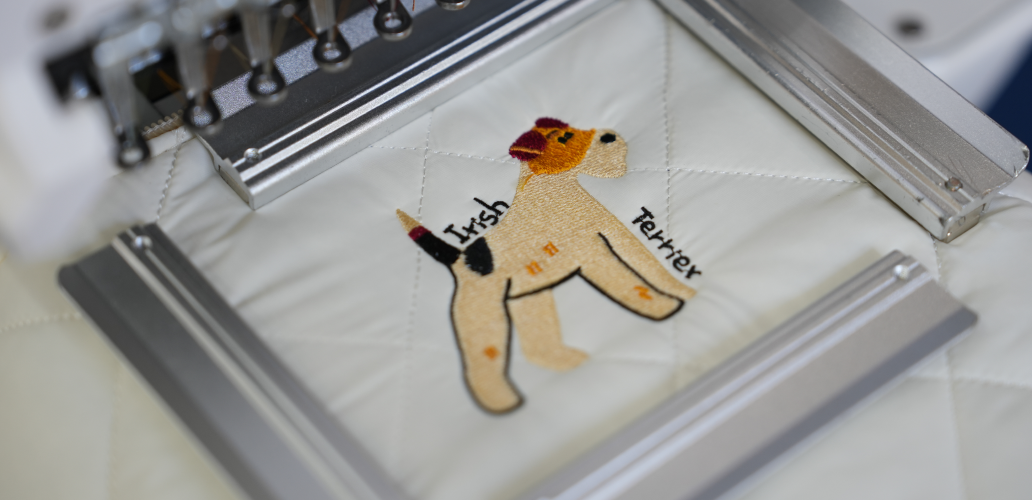

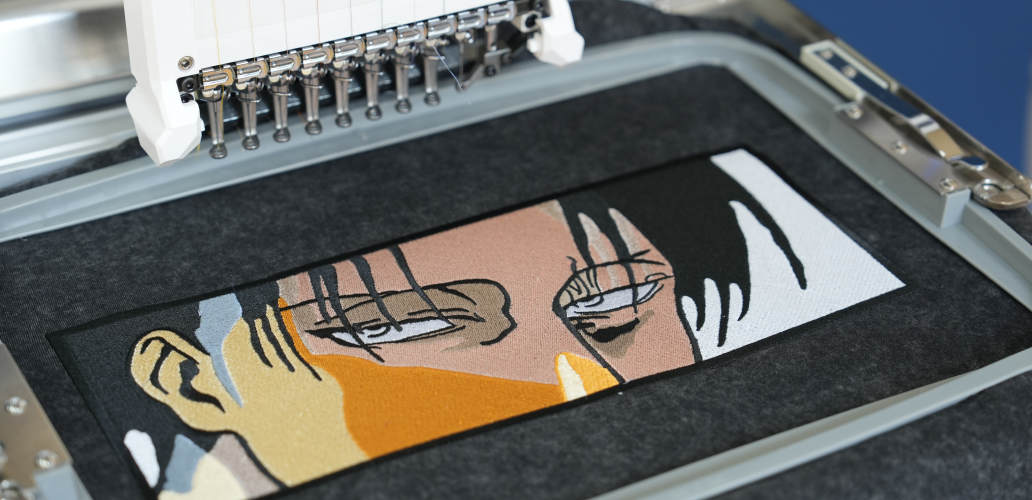

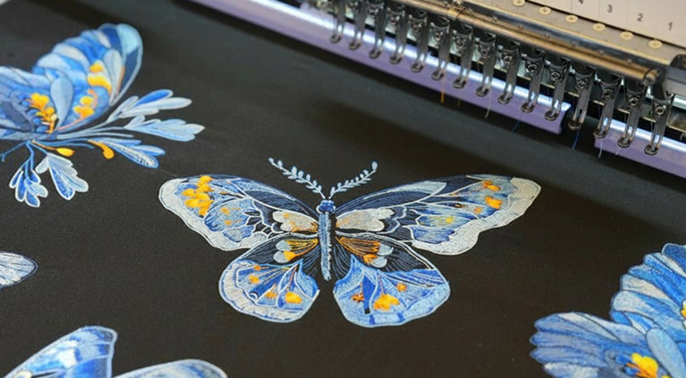

What You Can Create
What You Can Create
Product Specifications
Core Specifications
Model
HALO-X
Number of Heads
1 Head
Number of Needles
10 Needles
Embroidery Area
9.45" × 14.17" (240×360mm), suitable for cap, flat and finished garments embroidery
Max Embroidery Speed
1000 RPM
Memory Stitches
Total 100,000,000 stitches, at most 4,000,000 stitches for single pattern
Power Adaptation
80V-260V, adapted to all electricity environments
Language Support
17 multi-language interface
Net Weight / Gross Weight (with stand)
92.59 lbs (42.00 kg) / 288.81 lbs (131.00 kg)
Net Weight / Gross Weight (no stand)
92.59 lbs (42.00 kg) / 154.32 lbs (70.00 kg)
Measurement (with stand)
36.6" × 29.16" × 35.04" (92.96×74.07×89.00cm)
Measurement (no stand)
23.64" × 29.16" × 31.56" (60.05×74.07×80.16cm)
Technical Features
Auto Color Changing
Built-in auto color change function
Auto Thread Trimming
Circular knife trimming, easy knife adjustment & replacement
Self-Lubrication System
Automatic self-lubrication design
Shorter Leftover Threads
Shorter leftover threads on fabric reverse side
Performance & Stability
Machine Body Material
Aluminum alloy casting with high structural strength
Noise & Maintenance
Low-noise optimized structure, easy daily maintenance
Packaging Type
Plywood export packing
Applicable Scenarios
Perfect for home use and mini embroidery studio
In the Box
1 × Round Hoop 20cm
1 × Round Hoop 12cm
1 × Square Hoop 24×24cm
1 × Rectangular Hoop 36×24cm
Bobbin Winder
Tool Kit
