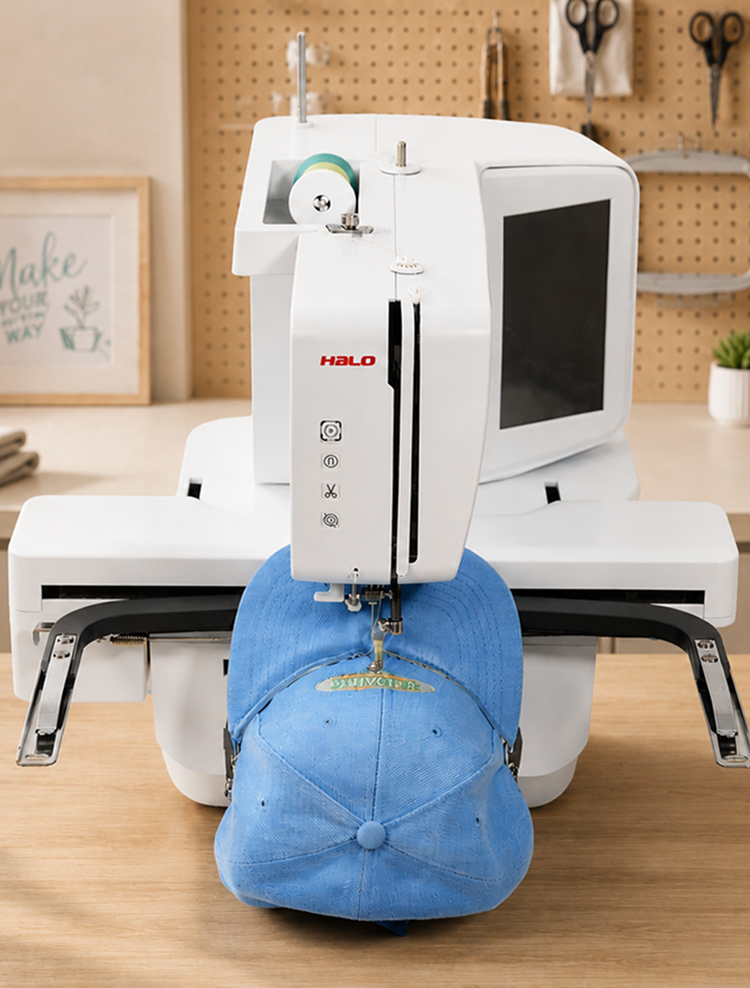

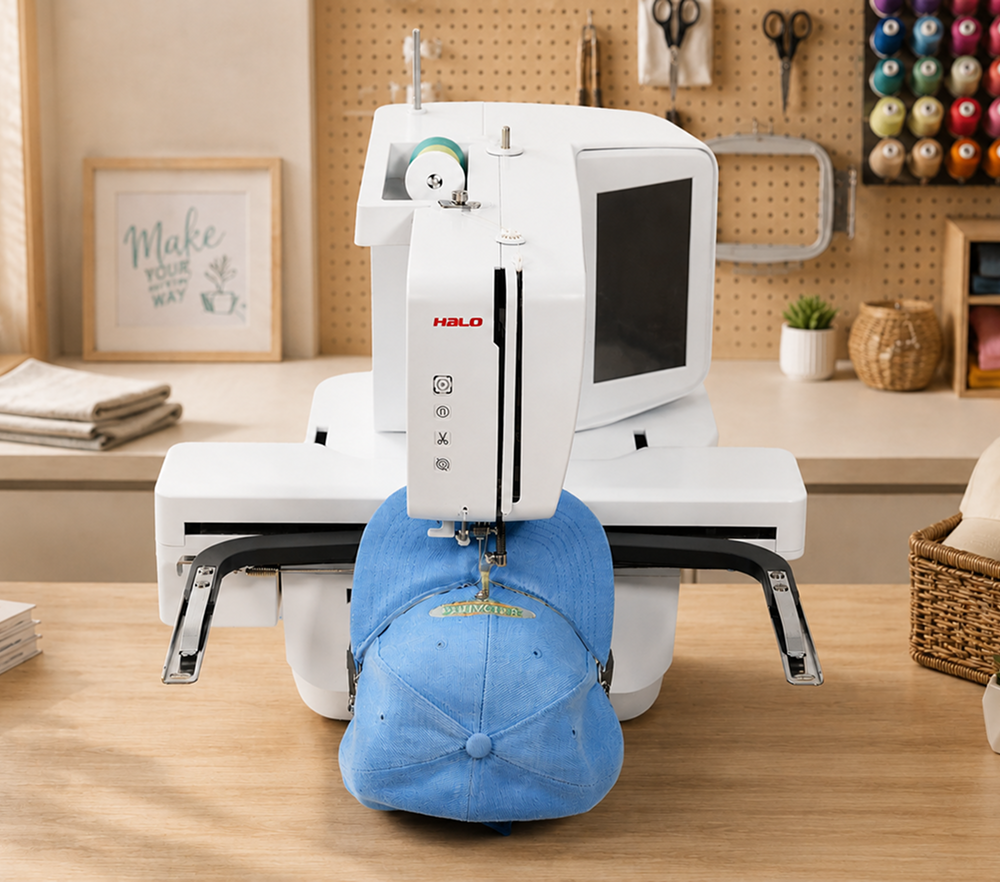

Cap Embroidery Single Needle Machine
Equipped with a full set of professional cap device, it easily embroiders adult baseball caps, trucker hats and children’s hats with neat, wrinkle-free stitching results.

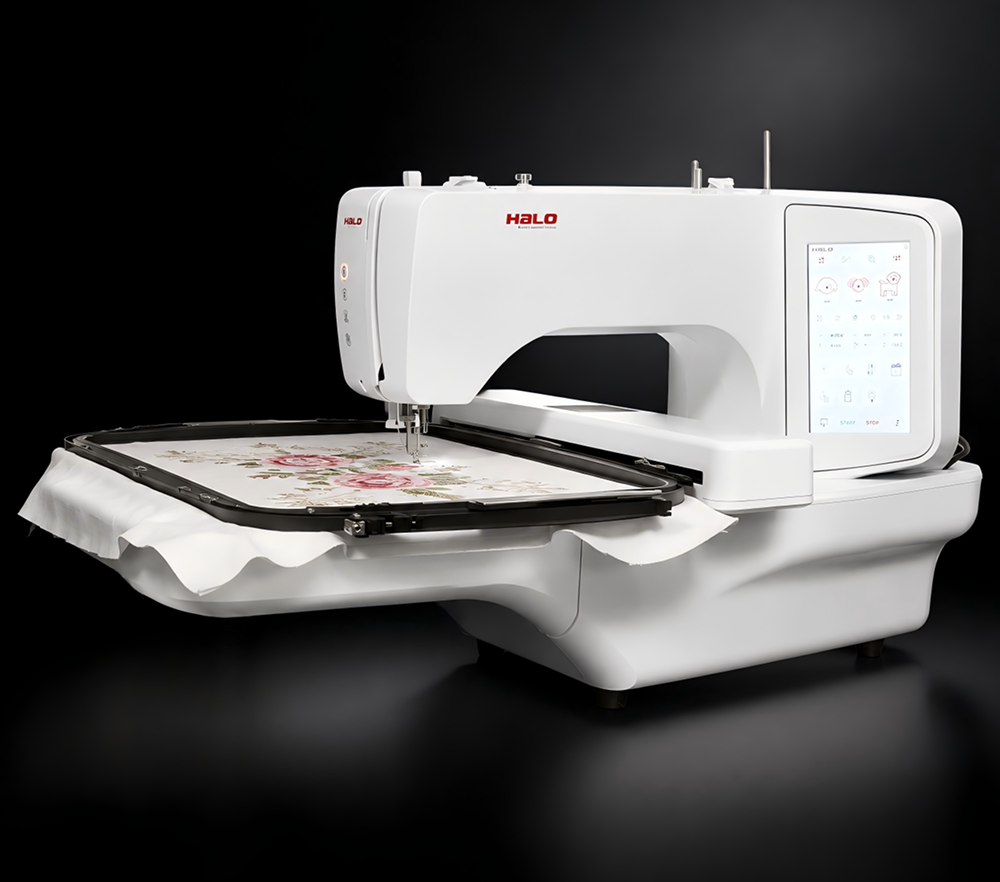

Large Embroidery Area 20×30cm (7.87"×11.81")

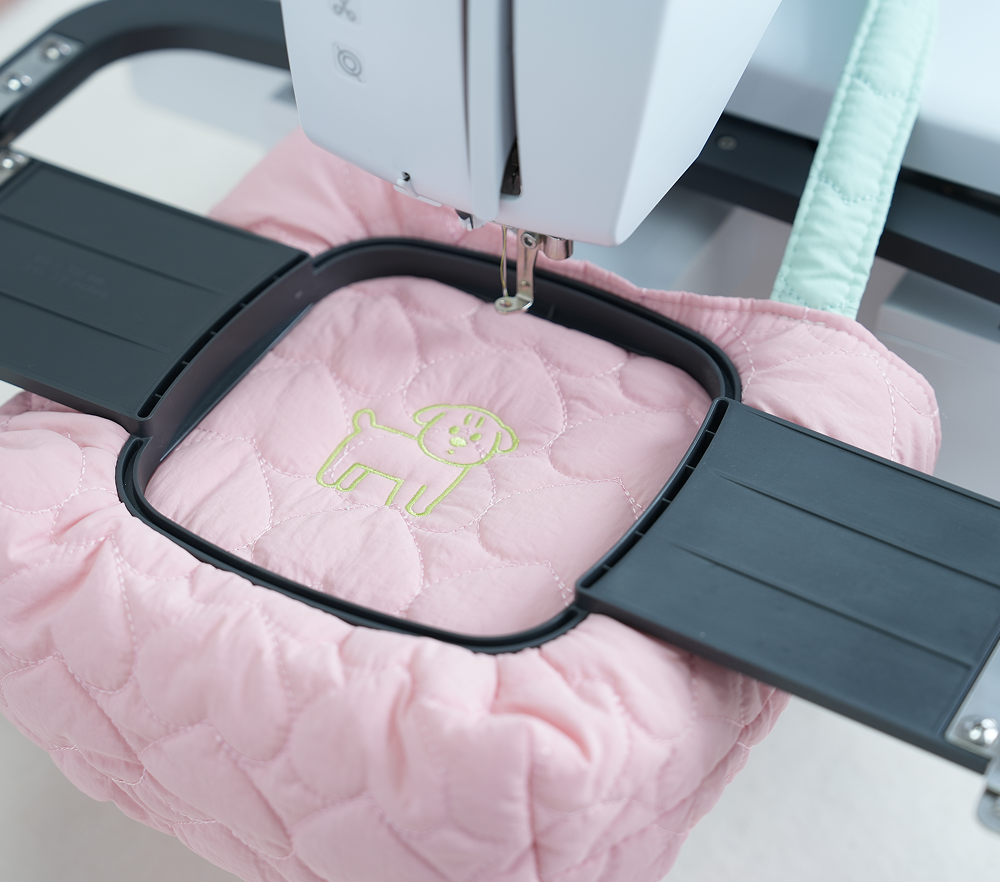

Industrial-Grade High Speed Spindle

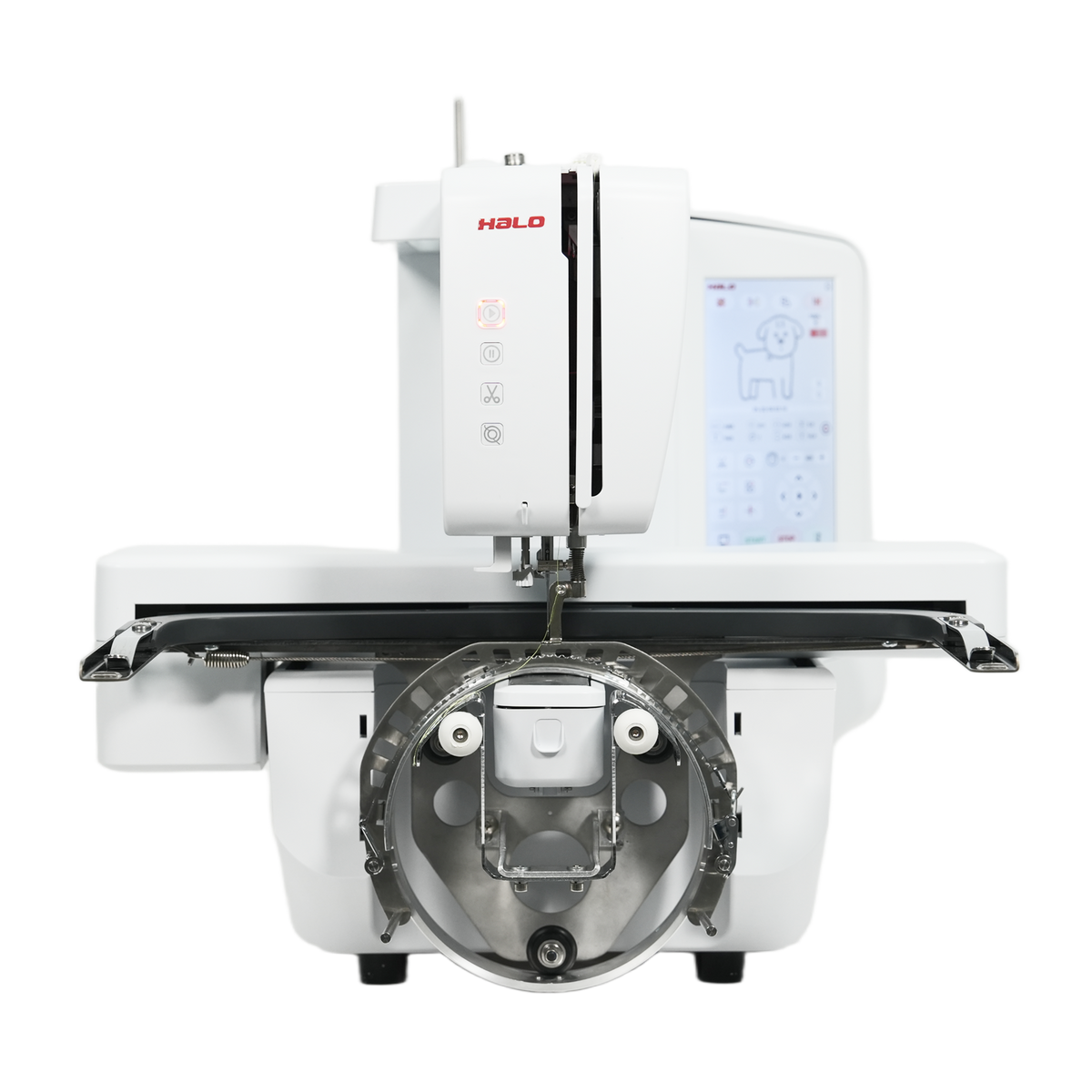

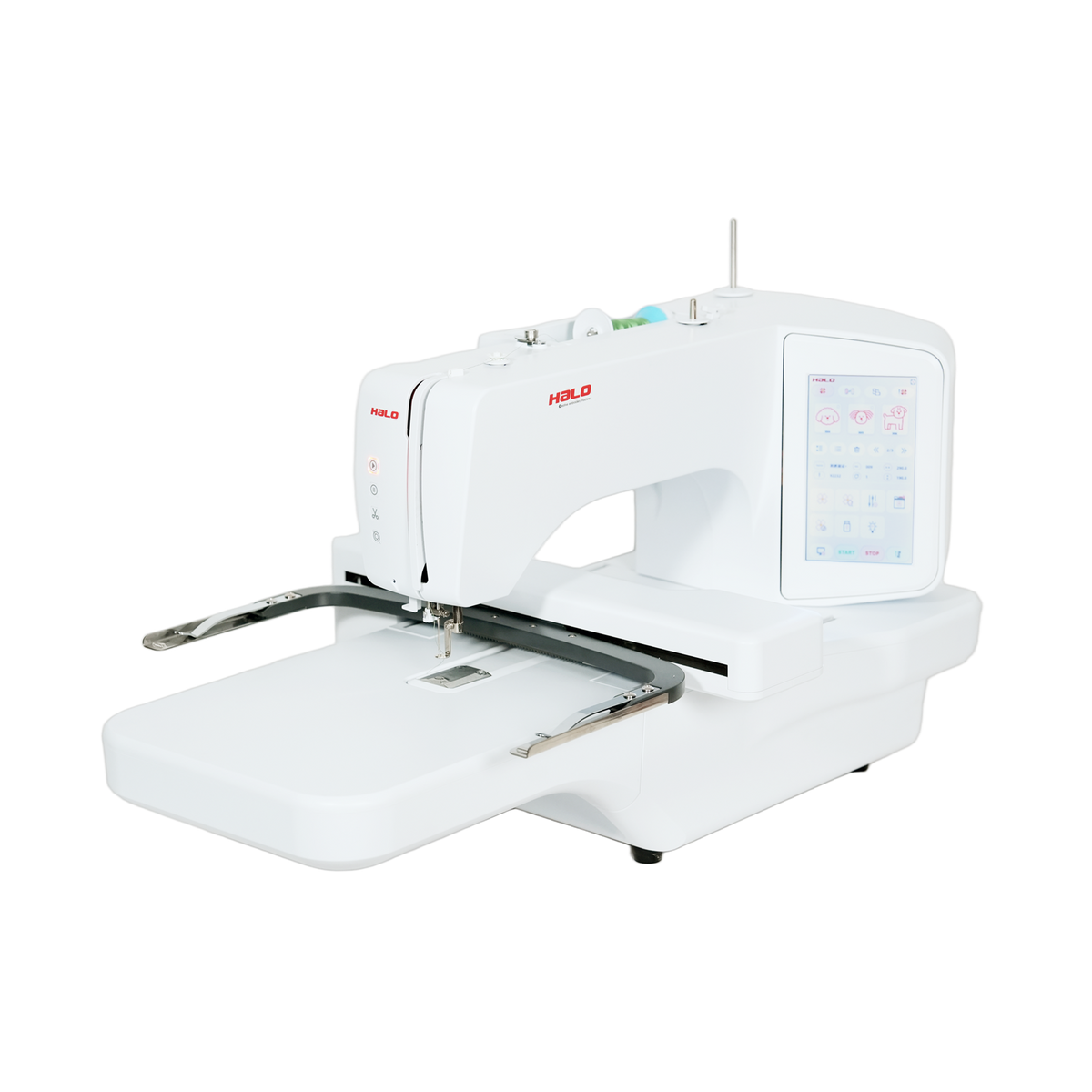

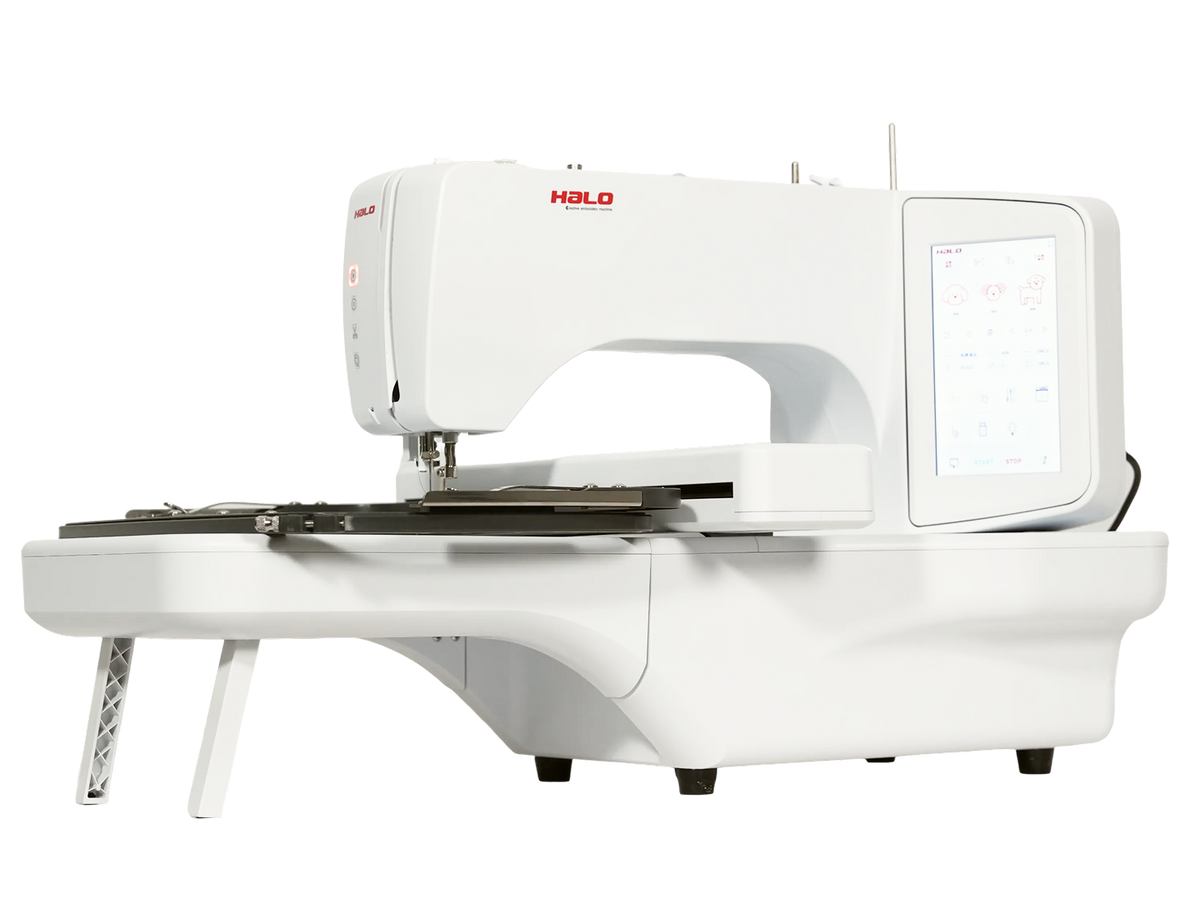

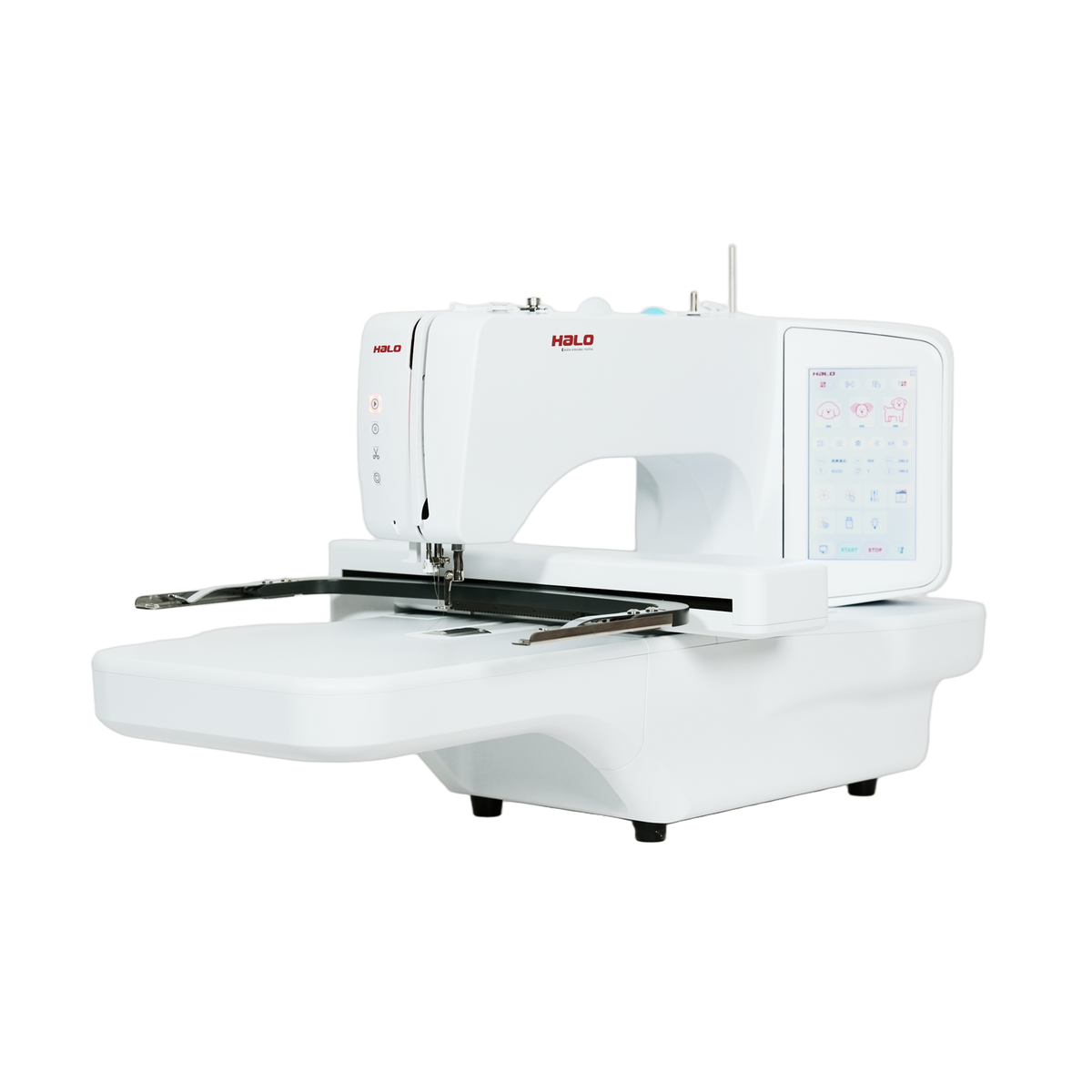

Front view

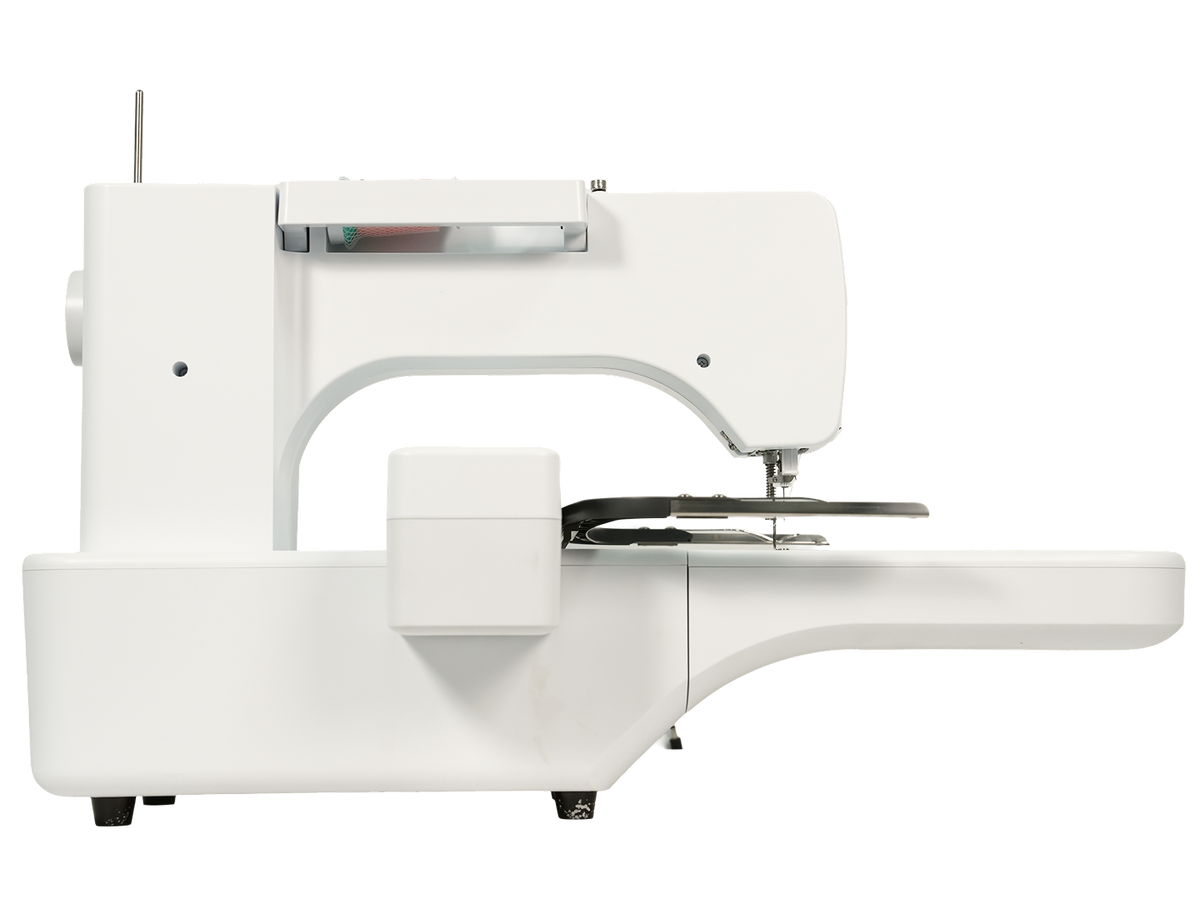

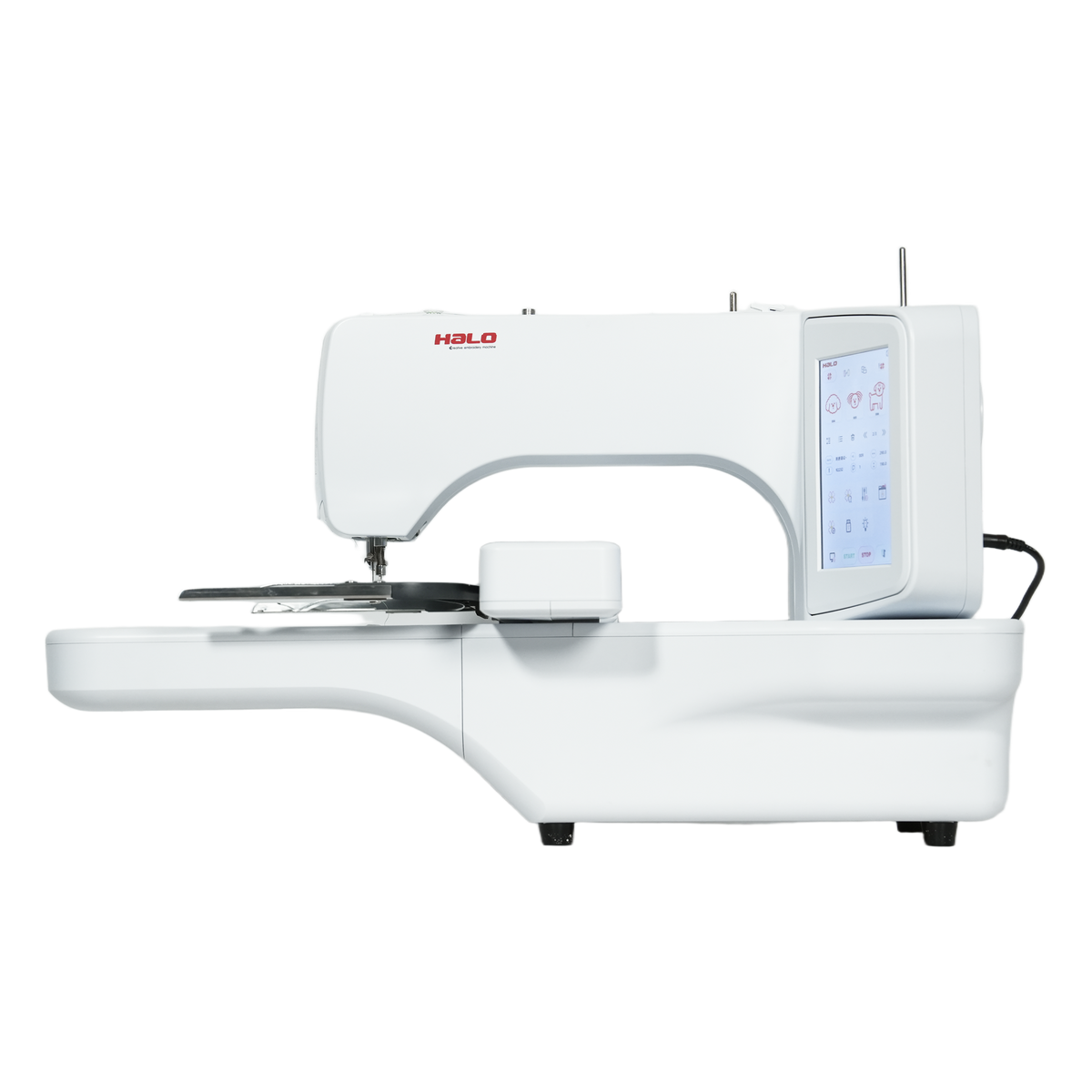

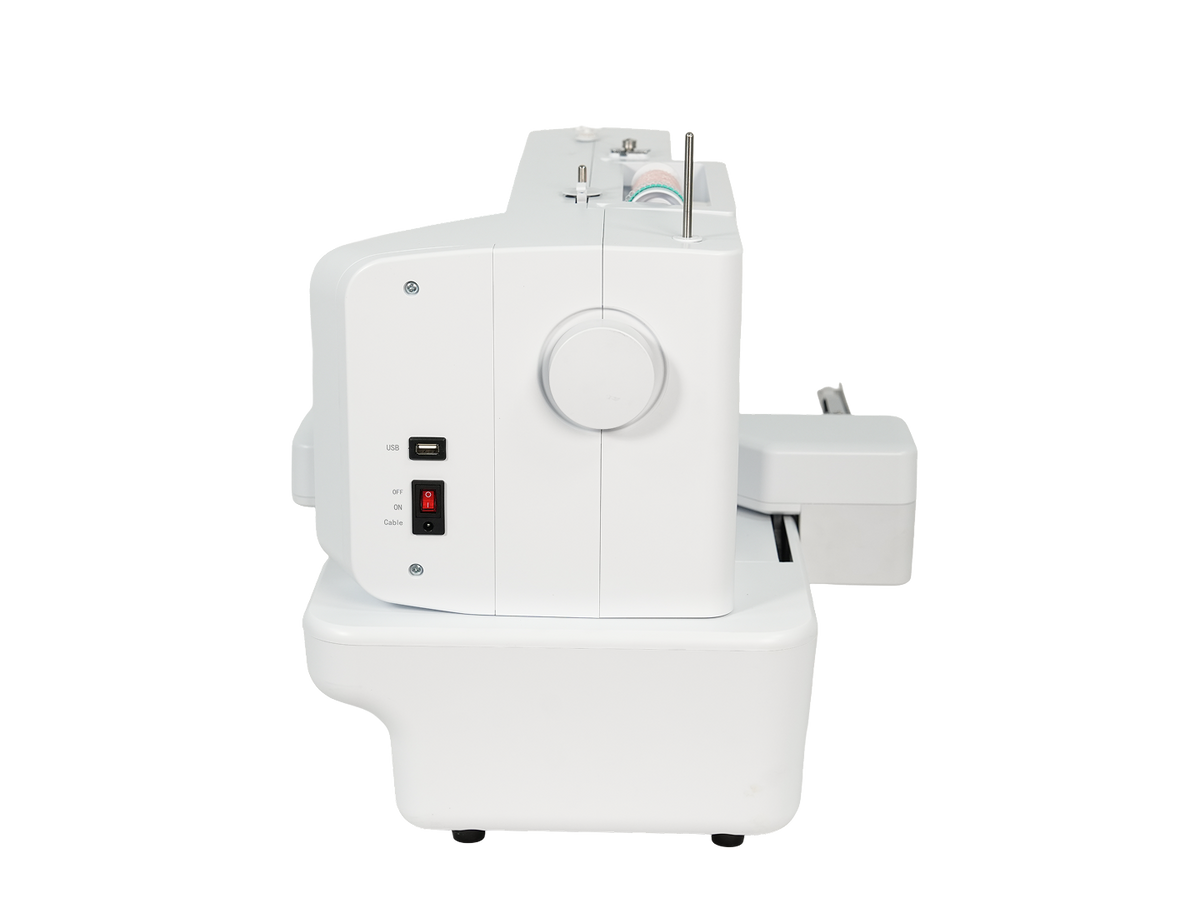

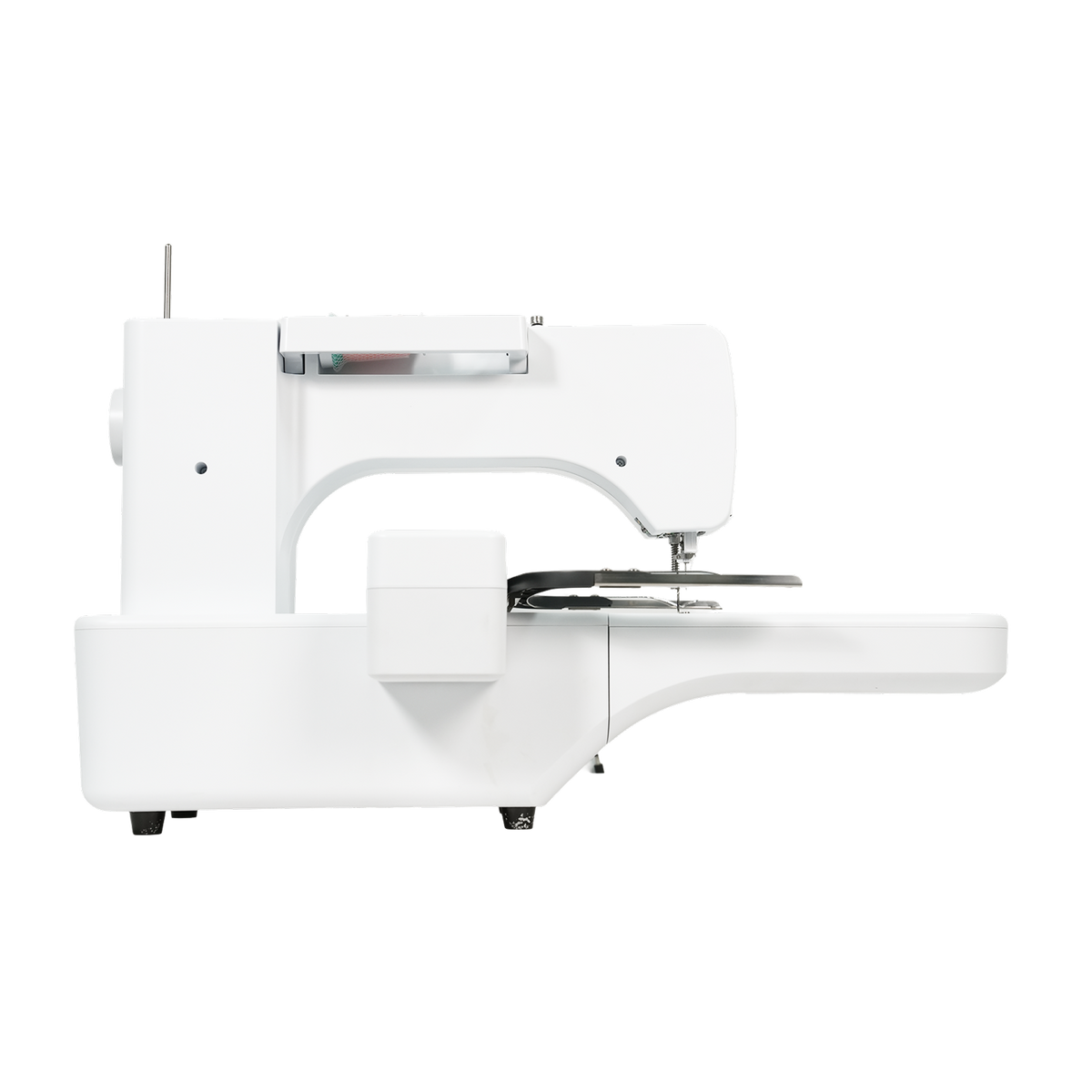

Side view
Rear view
1
2
3
1
2
1
1

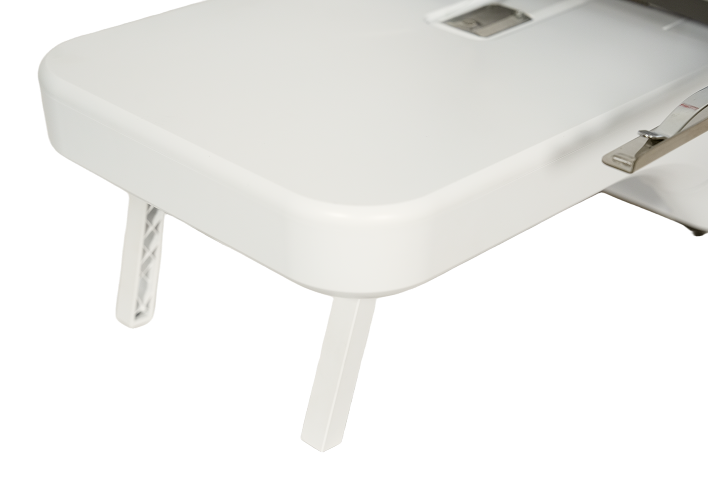

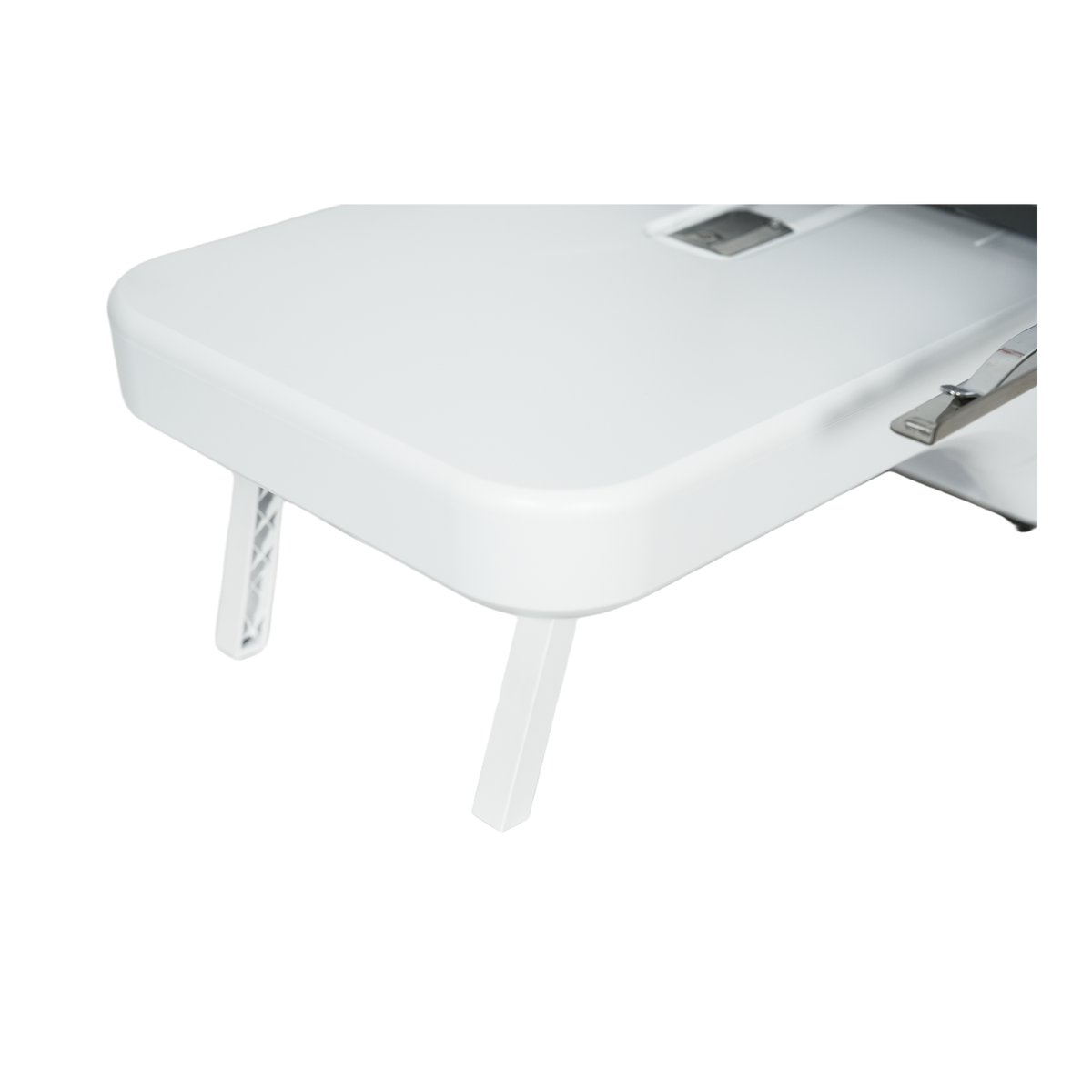

Stable Reinforced Stand Legs
Reinforced angled legs cut vibration during stitching; non-slip bases prevent sliding for reliable embroidery work.
2

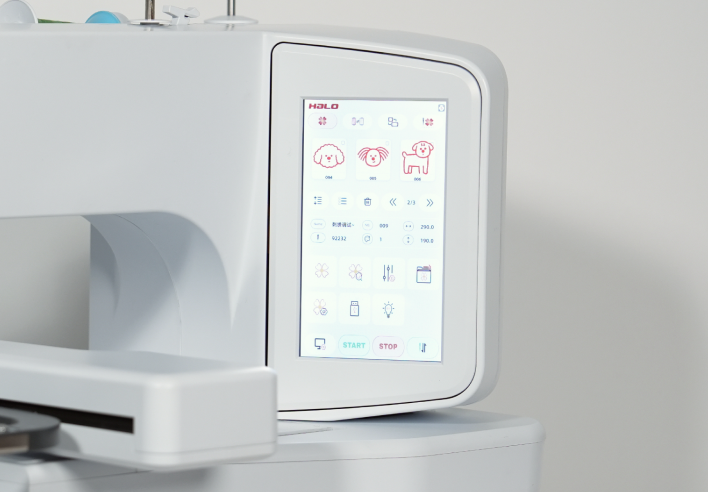

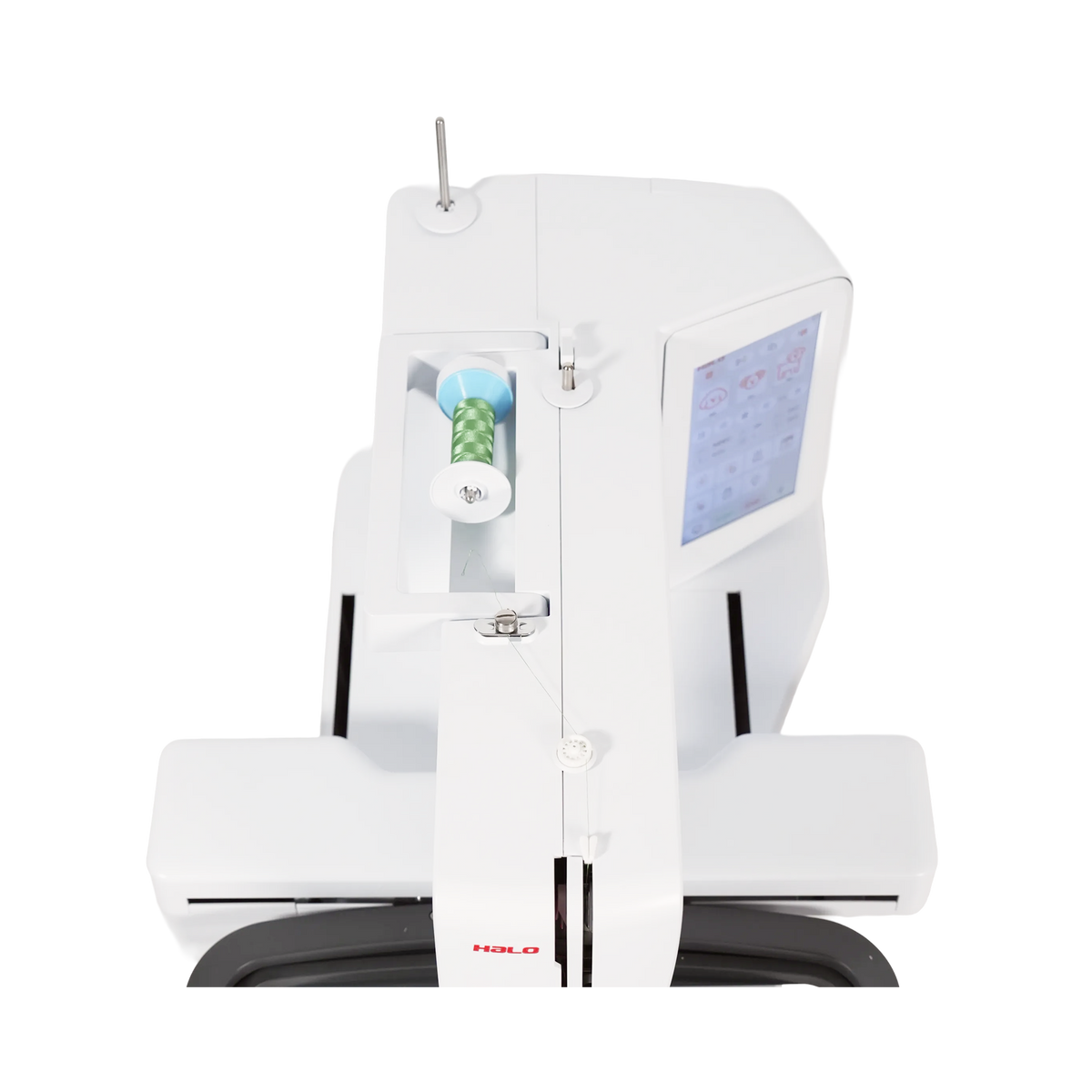

Intuitive Touch Control Screen
Responsive touchscreen with preloaded embroidery patterns, one-tap START/STOP buttons for effortless stitch setting and quick project adjustments.
3

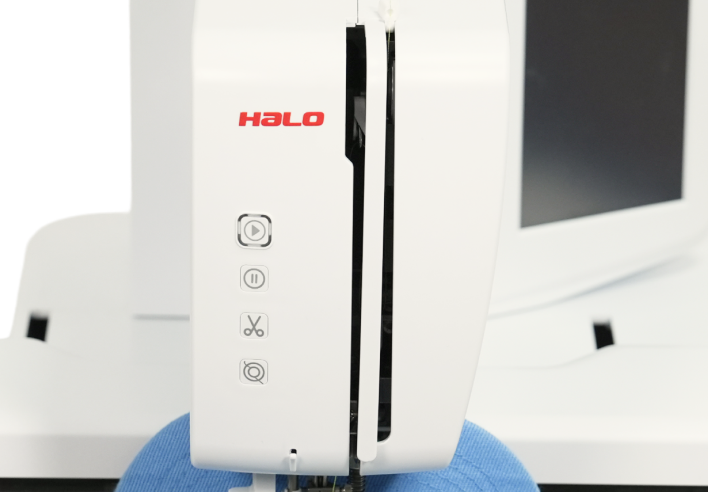

Convenient Body Control Buttons
One-touch playback, pause, thread trimming and stitch reset let you adjust embroidery workflows swiftly without operating the touchscreen.
1

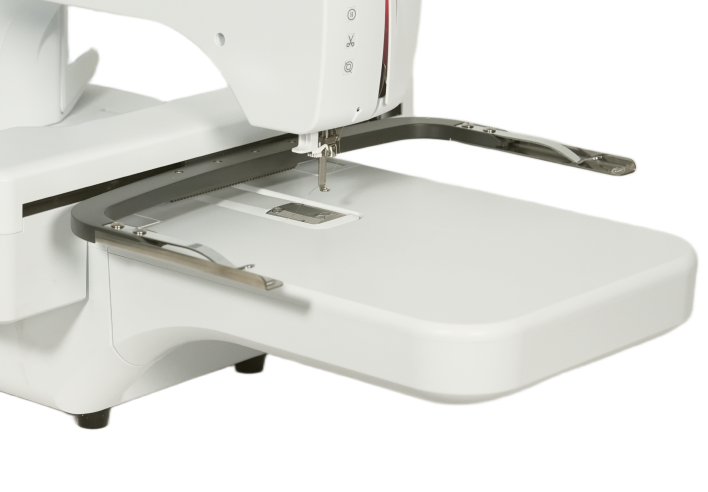

Removable Worktable
The worktable can be flexibly disassembled and replaced, suitable for embroidery frames and carriers of different sizes, improving the flexibility of equipment use.
2
Portable Handheld Design
Lightweight and easy to carry, convenient for on-site embroidery and small-space use, friendly for beginners.
1

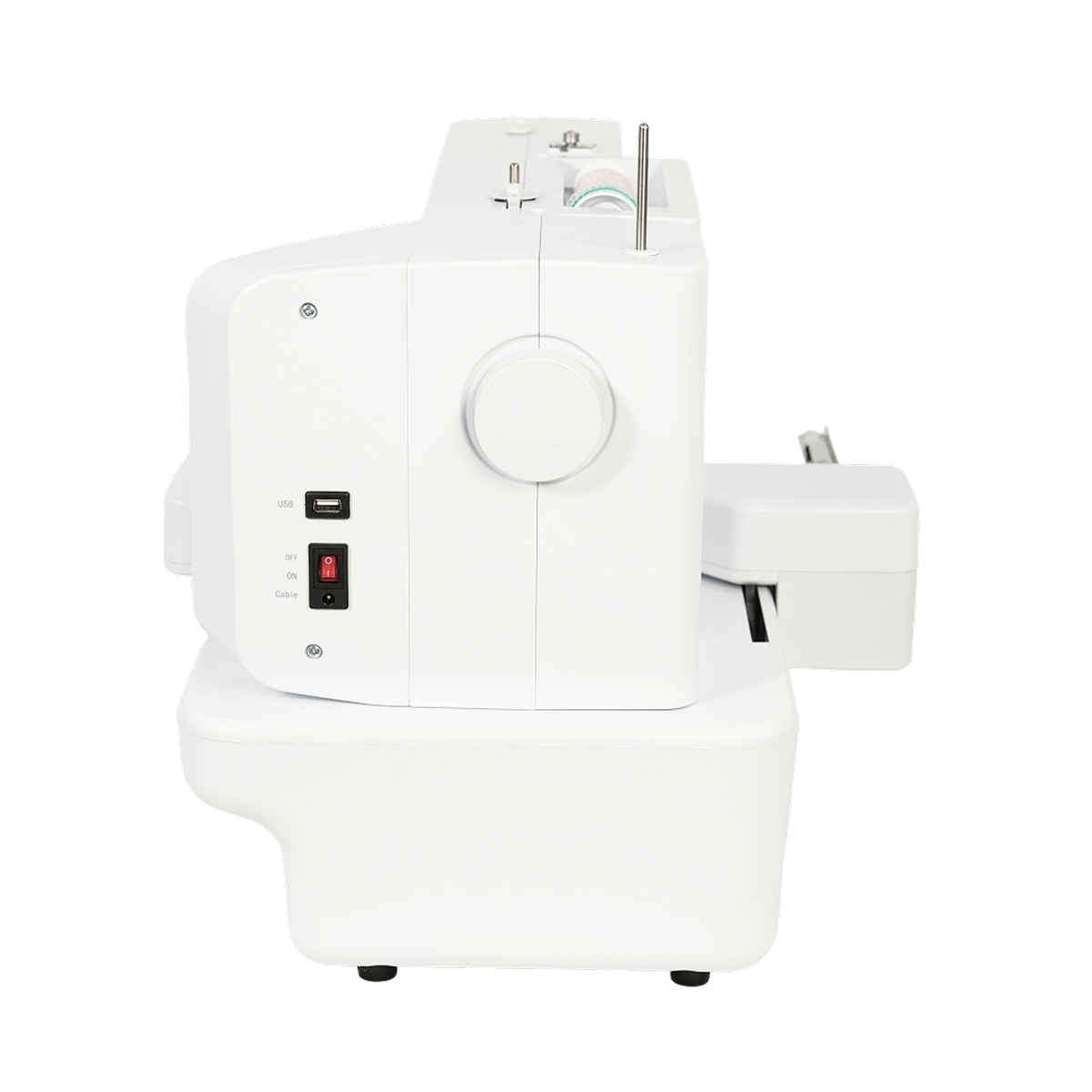

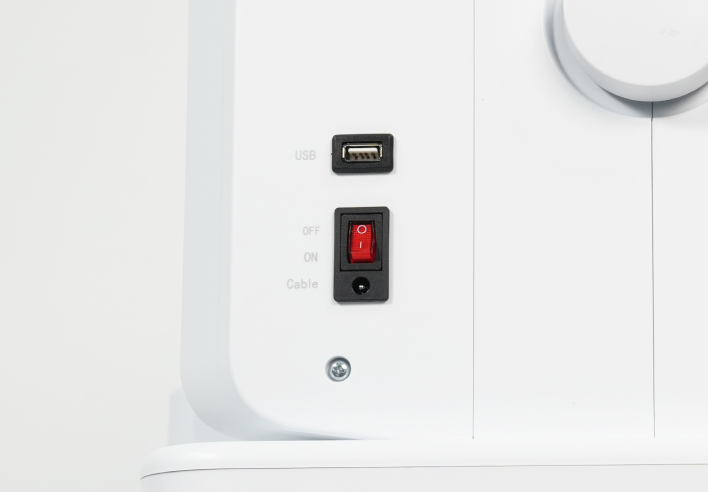

USB Port & Physical Power Switch
Convenient USB slot loads custom embroidery files easily. The tactile toggle power switch delivers straightforward on-off control for daily operation.

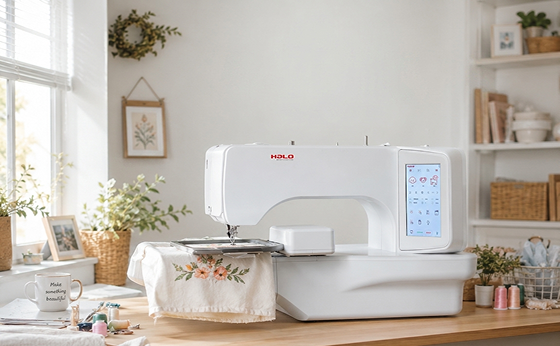

What You Can Create
What You Can Create
Product Specifications
Core Specifications
Number of Needles
1 Needle
Embroidery Area
7.87" × 11.81" (200×300mm), suitable for cap and flat embroidery
Max Embroidery Speed
1000 RPM
Memory Stitches
Total 100 million stitches, max 30 million stitches for single pattern
Resolution
0.1mm
Language Support
20+ multi-language interface
Power Supply
24V safe power supply, average power 60W
Power-Loss Recovery
Frame memory for uninterrupted embroidery
Net Weight / Gross Weight
36.38 lbs / 45.20 lbs (16.5 kg / 20.5 kg)
Packing Size
26.77" × 20.47" × 18.50" (680×520×470mm)
Technical Features

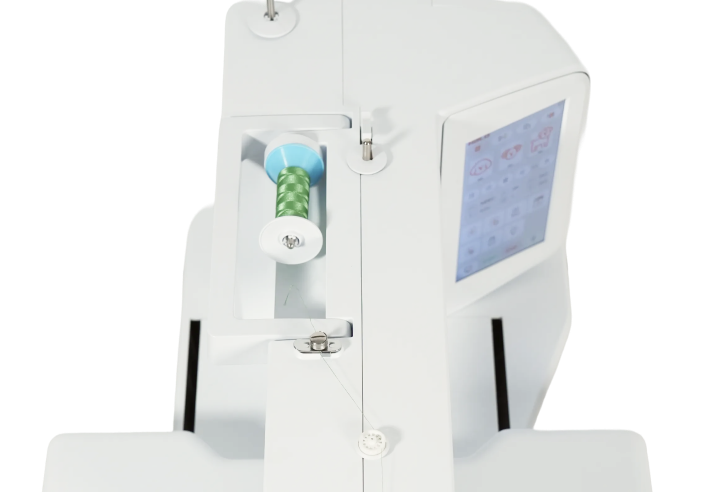

Auto Threading
Reduces threading time, friendly for beginners
Auto Thread Trimming
Stepping motor controlled, precise trimming
Auto Thread Tension
Dynamically adjusts tension in real time, ensures consistent quality
Independent Presser Foot
Electronically adjustable pressure for different fabric thicknesses
Thread Breakage Detection
Optocoupler sensor, auto stop and alarm upon breakage
High Rigidity XY Drive
Ensures stability and precision, prevents misalignment
Removable Worktable
Flexible replacement for different embroidery frames
Built-in Bobbin Winding
Independent design, reduces downtime for bobbin winding
Fire-resistant Wiring
High-temperature resistant wires, reduces safety risk
Performance & Stability
Machine Body Material
One-piece integrated body, enhances rigidity and reduces vibration
Drive Structure
Integrated rack-type groove drive, precise transmission and smooth movement
Applicable Scenarios
Perfect for home use and household embroidery
In the Box
1× FG Frame 100×100mm
1× FG Frame 180×130mm
1× FG Frame 300×200mm
1 × Tool Kit
